The 3-D Trombone

When I was at the New Music Controllers workshop at CCRMA this summer, after I'd demoed my trombone controller and mentioned that I was interested in using a retractable string for a slide (based on a suggestion from Chris Graham), a CCRMA grad student named Michael Berger clued me into a very cool device - the GameTrak Controller.

The GameTrak is a pretty amazing little device. Think of a joystick, which can measure X and Y axis movements, then add a retractable cord that protrudes through the handle and can measure Z-axis displacement. There are actually two of these in each GameTrak, and the player wears a pair of gloves that attach to clips on the end of the Z-axis cords. Internally, there are 6 potentiometers that hook to a small board that does all the analog to digital conversion and appears as a USB HID device. Hooking one of these up to, say, Max/MSP or pd is super simple, and here are some cool things that have been done with GameTraks:

Game Trak Theory (A CCRMA performance)
Cop de Cap by Experimental Headbang Orchestra (Stanford)

Since the Wii pretty much destroyed the GameTrak in the gaming market, they're available very cheaply now - I think I now own 6, and I got them for $20 each.

Originally I was only interested in cannibalizing one for the z-axis retractable cord, to use that for the slide of my trombone. But once I got one of the GameTraks open, I thought "why limit the slide to linear motion? Why can't we build a trombone "slide" that operates in 3 dimensions?" And so the 3-D Trombone was born.

Opening up the GameTrak is very easy, and the spring/joystick mechanism for one-half of the device can easily be removed with just a small philips screwdriver. I remounted the assembly in a project box, which is a lot larger than I'd like it to be, but it's a prototype.

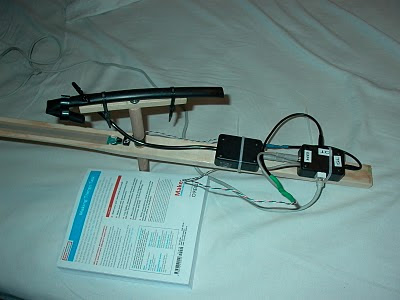

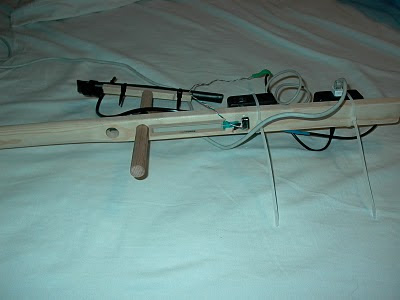

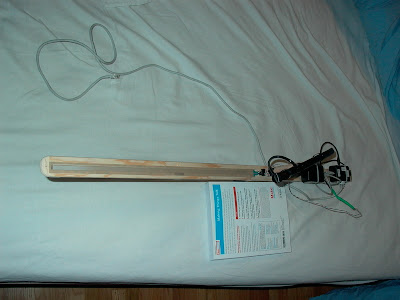

I built another breath controller using garden irrigation tubing and the same Freescale Pressure Sensor I used for the Gordophone. For overtone selection, I epoxied some momentary switches into piece of PVC tubing (in the Gordophone, these switches are in the joystick handle that is used to move the slide).

After wiring everything up, I made two changes to the Arduino sketch that does the sensor reading and MIDI event generation:

- Rescaled the "slide" motion limits, since the GameTra can measure about 6 feet of z-axis motion, but a trombone slide is only a couple of feet.
- Coded things so that the X and Y axis controllers produce MIDI continuous controller data on controllers number 16 and 17.

Finally, I put together a patch and an effect in Logic, as follows:

- A simple sine wave instrument using the ES2 synth. The breath controller is mapped to the oscillator amplitude.
- The EVOC 20 TrackOscillator Filter. I used Logic's "Learn" mode to set things up so that the slide's X axis motion controls the Formant Shift, and the Y axis motion controls the LFO intensity. I set the LFO frequency at 100 Hz so it really distorts the sound (I really lean into that distortion at around 0:52 and 1:02).

I made the X and Y axis controls very non-subtle, so I could tell when they were working. This video shows the whole thing in action.




One thing that's very tricky is maintaining a constant slide position on the Z-axis while moving around the X and Y axes. While playing a traditional trombone, one can move around, but the player's body position relative the the instrument remains constant. With the 3-D Trombone, all that changes, and it (so far) seems like a radically different experience. More exprimentation is due.

A week of good CCRMA

The Knoll - CCRMA Home

This past week I cashed in some vacation time and attended the 5-day New Music Controllers Workshop, led by Edgar Berdahl and Wendy Ju, at Stanford's Center for Computer Research in Music and Acoustics (CCRMA, pronounced "karma"). It was a great experience, with terrific guest lecturers and a fun group of participants.

(Update 7/22/10: Video of all the workshop demos is now online on the CCRMA website.)

The workshop is a one-week version of the same material covered in the Physical Interaction Design for Music course offered at Stanford (Ed and Wendy teach that course as well). Topics covered in the course include the Verplankian Physical Interaction Design Framework, basic electronics, the Arduino, using Max/MSP and pd, and using sensors to interact with the real world.

The guest lectures were one of the high points of the workshop. We heard from Bill Verplank (Interaction Design), Dan Overholt (Music Interface Technology Design Space), Alexandros Kontogeorgakopoulos (Cardiff School of Art and Design - Haptic Digital Audio Effects), and Ge Wang (Chuck programming language, Smule). I particularly enjoyed seeing all the cool projects that Dan Overholt did, including Overtone Violin, Sphere Spatializer, and his Overtone Labs work. And if you've never seen Ge Wang talk, you really, really should. He blew me away with his geek chops, his musician chops, and his business chops -- all in one hour.

I also really enjoyed meeting all the other participants. We were all over the range in terms of experience with music performance, synthesis, hardware, software... but everyone chipped in to help each other fill in their knowledge gaps.

Here are some photos and videos of the workshop:



Ian's Thumb Piano (force sensitive resistors, an acceleromoter, and some Max/MSP code)

Ian is also no stranger to geeking out with electronics and music. Here he is with his Guitamoton (built previously):



and a video of it in action:






A sensor glove from Jenifer (Masters student in Intermedia Music Technology at the University of Oregon)



Jeremy and Chekad testing their "conductor" device that allows the player to change the tempo of a performance by conducting. They had about two days to build it, and it actually worked!

For the final demo/concert in the CCRMA Stage, we had a great audience of CCRMA faculty and students, including John Chowning (!).



Between sessions, I wandered around the CCRMA building. Man, that place is one big house full of cool toys:


The door to the Max Lab, named after Max Matthews



Inside the lab - a music/hardware/software hacker's paradise. And we had full access to it for the week.




Yes, there's one whole bin just for accelerometers.

On the CCRMA ground floor there's a museum of sorts. Check this stuff out:



A NeXT cube. Man, I used to support those things at U of M. The optical drive qualified as a percussion instrument.


A Yamaha DX-7, the first commercially successful digital synthesizer. The FM synthesis patent that Stanford licensed to Yamaha was at one point the most lucrative patent held by the University.



An early prototype FM synthesizer from Yamaha? Check out the console:



Notice how there are actually four separate monitors.



Interesting aural possibilities...

And, in the 2nd floor common area:


When reading Computer Music Journal, it's best to have an ample supply of Tabasco on hand.

After the demo/performance, some beer was consumed, and then Chekad pulled out his violin. I had no idea he was such an accomplished violinist, both in western styles and in the styles of his native Iran. He jammed with Dan Overholt, and then with Alexandros, who managed despite lacking a piano bench:







A nice end to the week.

-Gordon

Updated Trombone Controller

Over the past month or two, I've been slowly working on a refinement to the trombone controller, and I've finally got something that's physically stable and reasonably playable. Here's an update:

First, here's a photo of the prototype:



If the wooden handle (used to hold the instrument) looks like an axe handle to you... you'd be right. I'm still working on how the performer's left hand is involved, but for the time being, I've relegated it to a supporting role.

The major change between this prototype and the previous prototypes is the slide. The new prototype is essentially a copy of one half of Thomas Henriques Double Slide Controller. The basic construction is pretty simple, and involves:

• A piece of 1/8" x 1 1/2" x 36" aluminum stock (Home Depot) - the substrate for the "trombone slide"
• A 24" x 2" piece of plexiglass (Tap Plastics - a 15 minute walk from my house) - the bearing surfaces of the "slide"
• A 5" x 3" piece of plexiglass, that holds:
• Two 3/4" x 2 3/4" blocks of teflon, which I shaped with a router, and ride along the long plexiglass piece. These are equivalent to the outer parts of the "slide"
• A repurposed joystick controller, which the player holds in his/her right hand. The controller handle is used to move the "slide", but also has 5 buttons that control overtone selection and a slide quantization mode (I'll explain that later). The buttons were epoxied into holes drilled into the joystick handle.
• A project box that contains a Freescale pressure sensor, and all the wiring interconnects.
• A "mouthpiece" that allows the performer to blow into the pressure sensor.

To set the stage, here's a little video that shows how the instrument is held, and how the slide moves:




Sensors

There are three types of sensors on the instrument:

Breath is detected via a Freescale pressure sensor. In the photo below, the mouthpiece (the clear plastic vinyl tubing that the player blows into) is connected to a box with some 1/4" tubing. The box contains the pressure sensor, along with the other wiring interconnects. At the top of the mouthpiece, there is a "T" connector that allows half of the airflow to exit (so the player feels like s/he is blowing through the instrument) and the rest goes to the pressure sensor. The Arduino code reads the sensor and produces MIDI Breath Controller data.




Slide Position is detected with a SpectraSymbol 500mm SoftPot linear potentiometer. The SoftPot is adhered to the aluminum stock using the adhesive backing provided with the SoftPot. The aluminum stock is screwed to a slightly wider piece of plexiglass. A mechanism slides along the edges of the plexiglass. The bearing surfaces are made of teflon block. I cut a groove in two pieces of the block using a router, and these grooves line up with and ride along the plexiglass, as shown below.



In the middle of the clear block, you can see what appears to be a setscrew. This is actually a stylus that is manufactured by SpectraSymbol. You can't see it in the photo, but the end of the screw is a small nylon stylus that rides on a small spring that provides a constant force. This makes the pressure on the SoftPot very consistent, which means the slide behavior is very predictable.

The Arduino code reads the slide position and computes the appropriate pitch bend to send. My most recent firmware also includes a mode where the slide positions are quantized - in effect, the slide "clicks into position" automatically. Although a glissando isn't possible with this setup, the instrument's notes are always in tune. The slide quantization mode can be toggled on and off using the thumb of the right hand (there was a spare button on the joystick handle that was perfect for that).

A future enhancement I'm considering is providing an LED on the instrument that lights up when the player has the slide in one of the seven positions (well, actually, within a certain range of the dead-on position). Trombonists are used to reaching out to touch the bell to gauge where 3rd position is; this LED would do the same thing, but for all seven positions.

Overtone Selection is accomplished via a set of four switches on the handle that the player uses to move the slide. Here's a picture of the handle:



The handle is a repurposed joystick, with some momentary switches epoxied into some (very crudely drilled) holes I made in the handle. The "trigger" button is actuated with the index finger, and the remaining buttons are operated with the second, third, and fourth fingers. By using a simple "chording" method, the player can select any one of eight overtones:

Overtone 0: off off off off
Overtone 1: on off off off
Overtone 2: on on off off
Overtone 3: on on on off
Overtone 4: on on on on
Overtone 5: off on on on
Overtone 6: off off on on
Overtone 7: off off off on

Now, only 8 overtones is not really enough to make a trombone player feel at home (most accomplished players can produce at least 10), so I need to think about this some more, but 8 overtones does give me enough range to play stuff that's interesting.

Here's a short video of me playing a little improvisation on the instrument. I still have some work ahead of me to produce a patch that makes the instrument play well. The patch you're hearing is one I built for the ES2 FM synth that comes with Apple Logic Express.





I have to say that, while the instrument is still pretty glitchy, I'm starting to feel like it's possible to be expressive with it. I'm also feeling like the instrument is pretty consistent; it behaves predictably, which allows me to practice a musical passage, get it right, and then to be able to perform it in a repeatable fashion.

Finally, as a point of comparison addressing the expressiveness of the instrument, here's an improvisation in the same vein, but on my trombone.

Gordophone Slide Handle

After trying to place the overtone selector switches on the left hand, I've decided that's no good - it's too hard to hold the instrument with the left hand and also actuate the switches. So I've decided to copy the general layout of Thomas Henrique's Double Slide Controller and put the overtone selectors on the right hand.

To accomplish that, I'll need some sort of a handle I can put tactile switches on. After I thought about it for a while, I realized what I needed would look an awful lot like a joystick handle. So, after a quick trip to Weird Stuff Warehouse, I had two old joysticks ($8 total). Time for disassembly!




I picked up two different joysticks, both of which have a large surface area on the right where I should be able to mount buttons. Also, the joysticks have some existing buttons that could be used for other functions, like patch changing.

I started with the simpler, two-button joystick. Off with the bottom plate...



And expose the inside of the handle, to see what's in there. Pretty simple, really - two switches, and 3 wires out the bottom.



The base housed the X-Y potentiometers. I won't be needing them, so out they came, which released the handle.



Verifying the wiring of the switches - as expected, green is ground.



So that handle is ready to try out. I'll need to attach it to the new slide I'm building. More on that in a later post.

I also bought a Wingman joystick. This one is more complicated - there's a trigger, three pushbuttons, and a small thumb-actuated joystick. Those all could be interesting to use.




Getting the handle out required some... surgery. Let's just say the warranty is definitely voided now.



There are seven wires coming out the bottom. I tried a little "black box reverse engineering" to see what leads corresponded to what switch, but that proved inconclusive.



So I opened up the handle. And all the switches promptly fell out. Everything is held in place by the two halves of the handle. I eventually got everything back together, but it wasn't easy.




Next up: order some sample tactile switches from Mouser and find just the right one. I'll use the joystick's trigger for the index finger, so I'll need three additional switches for the other three fingers.

The Marmonizer, Version 4

What is the Marmonizer?

The Marmonizer is a MIDI Harmonizer. To use it, you attach a MIDI instrument to the MIDI IN port, and attach a synthesizer, or a computer running a softsynth, to the MIDI OUT. When you play a note on the MIDI instrument, the Marmonizer sends that note, plus other notes, to its MIDI output.

I originally conceived of the Marmonizer as something that could be used by players of wind synths like the Yamaha WX-5 or the Akai EWI. But there's no reason it couldn't be used by players of other kinds of MIDI instruments. In the clips in this post, I'm using an older Yamaha WX-7.

There are a number of different harmonization algorithms that the Marmonizer knows how to produce. Some are quite simple. For example, one of the harmonizations produces a major triad in first inversion. If you play a C, the Marmonizer will send C, the G below it, and the E below that. If you play an E, the Marmonizer will send E, B, and G#. Here's a clip of this harmonization. You'll hear it unharmonized once, then with the harmonization.





Other algorithms are more complex. For example, there is a harmonization that sounds a raised-ninth chord (the played note becomes the raised ninth), and then sounds a bass note underneath, forming a slash chord. The actual bass note that sounds is randomly selected from one of four possibilities, which can produce some interesting voice leading when you play a melody.





For those of you who are familiar with Michael Brecker's EWI work, this idea of changing the bass note around comes from the patch he uses on Original Ray's from his debut album.

In this clip, I play a line unharmonized, then I play the same line in each of the 11 harmonizations the Marmonizer knows about, and finally the unharmonized line again.






There's also mode where the Marmonizer cycles through all the harmonizations it knows. Each new note gets a different harmonization. This can produce some pretty zany results when you drive an Asian percussion ensemble. In this clip, I'm just double-tounging a single note for a couple of bars, then a different note. Since the actual output notes are changing as the Marmonizer cycles through its 11 harmonizations, the result is pretty interesting.





Since this is all just code running on a microcontroller, the harmonizations can be more complicated than the ones mentioned above. As of now, I've only begun to think about all the possibilities, but some thoughts are:

• Allow the player to specify a key, and make the harmonizations make sense in that key.
• Select several different harmonizations and automatically cycle between them on each new note.

• Allow different notes to be steered to different MIDI channels. Probably the most useful configuration would be to sound the topmost voice on one MIDI channel, and the other voices on a different channel.
• Allow new harmonizations to be programmed by the user.
• Allow changing the harmonization by sending the unit a MIDI program change. For a live setup, the player could use a stomp box to select harmonizations. Possibly allow harmonizations to be grouped into banks (or maybe use a folder paradigm) to allow a performer to choose a set of harmonizations that work well together for a particular piece.

• Save/load harmonizations via MIDI system exclusive messages.
• Allow the player to control how many notes of the harmonization sound, perhaps via a knob or expression pedal. Or, make the number of notes sounding a function of the note on velocity.
• Adding new "algorithmic" harmonizations that give the player a high degree of control and reproducability.


Finally, here's a little improvisation:





The Hardware

The hardware is pretty simple: an Arduino microcontroller, some pushbutton switches, some toggle switches, and some potentiometers. The current version only utilizes one pushbutton, one toggle switch, and one pot, but future versions may enable more controls. It's just a prototype at this point.

For a final version, I'm investigating using Ruin & Wesen's Minicommand, which is an outrageously cool idea, and way more roadworthy than anything I'll ever be able to build.

The code:

/**

The Marmonizer

The Marmonizer is a MIDI harmonizer. It takes MIDI data on its input port and
sends harmonized data on its output port. The types of harmonizations will
eventually be user-programmable and extremely flexible.

Version 4:

Version 4 builds on version 3, which was a simple MIDI harmonizer with some
randomization. Version 4 introduces:

- multiple voicings (11 to be precise)
- allows the player to select which voicings are playing
- allows a cycle mode, where each new note on selects a new harmonization algorithm
- allows a split channel mode, where the top note in each harmonization
  goes to a primary MIDI channel, and all others go to a secondary channel
  (currently primary and secondary are fixed at 1 and 2, respectively)
- passes continuous controllers
- allows the player to control how many of the possible notes in a
  particular voicing are sounding (with a potentiometer).
- fixes a stuck note problem with v3

Limitations: the algorithm always "maps down" so we may roll notes off the
deep end of the MIDI spec.

 Gordon Good (velo27 <at> yahoo <dot> com)
 Mar 18, 2010

 */

#include <MidiUart.h>
#include <Midi.h>

#include <Debounce.h>

MidiClass Midi;

int ledPin = 13;  // LED pin to blink for debugging
#define CYCLE_MODE_PIN 7 // Switch connected to this pin sets cycle mode (new harmonization on each note on)
#define SPLIT_CHANNEL_MODE_PIN 6 // Switch connected to this pin sets split channel mode

#define MAX_VOICES 5  // Maximum number of voices allowed in a harmonization
int nVoices = MAX_VOICES; // number of voices for current harmonization to sound

// A structure that represents a harmonization algorithm. It currently
// includes a name for the algorithm, and a pointer to a function
// that implements the algorithm.
typedef unsigned char* (*harmonizationAlgorithm)(byte); // a harmonizationAlgorithm knows how to harmonize any midi note
typedef struct {
  char *name;
  harmonizationAlgorithm algorithm;
} Harmonizer;

// Minimum and maximum values we read from potentiometers.
int POT_MIN = 0;
int POT_MAX = 1023;

boolean isCycleMode = false;  // If true, a new harmonization sounds on each note on event

// Digital input 2 cycles through the harmonizations if
int PIN_HARMONIZATION_SELECT = 2;

// All available harmonizers
Harmonizer allHarmonizers[11] = {0};

int nHarmonizers = sizeof(allHarmonizers) / sizeof(Harmonizer); // the number of harmonizers

// The index of the current harmonizer
int harmonizationIndex = 0;

// These are the notes of the current harmonization.
unsigned char harmonization[MAX_VOICES] = {0};

// A structure that keeps track of a sounding note (note number, MIDI channel)
typedef struct {
  unsigned char note; // MIDI note number
  unsigned char channel; // MIDI channel
} SoundingNote;

// This array keeps track of all the cuurently sounding notes.
SoundingNote notesOn[128][MAX_VOICES] = {0};

// Boolean that tracks if we are sending the top note to one channel the the other
// notes to a different channel
boolean isSplitChannelMode = false;
#define PRIMARY_MIDI_OUT_CHANNEL 0 // Human-friendly name is channel 1
#define SECONDARY_MIDI_OUT_CHANNEL 1  // Human-friendly name is channel 2

// Instiantiate debouncers for the pushbutton switches.
Debounce debouncer_harmonization_select = Debounce(20, PIN_HARMONIZATION_SELECT);

/* ********** Harmonization Algorithms ********** */
// These are all the harmonization algorithms the program knows about

/*
 * A harmonization algorithm that sounds like Michael Brecker's
 * Oberheim XPander patch on "Original Ray's" from the album
 * "Michael Brecker" (MCA Records, 1987).
 */
unsigned char *breckerizeAlgorithm(byte note) {
  harmonization[0] = 0;
  harmonization[1] = -4;
  harmonization[2] = -9;
  int rnd, sel;
  rnd = millis() % 4;
  sel = rnd % 4;
  sel = (sel + 1) % 4;
  if (0 == rnd) {
    harmonization[3] = -14;
  } else if (1 == rnd) {
    harmonization[3] = -15;
  } else if (2 == rnd) {
    harmonization[3] = -25;
  } else if (3 == rnd) {
    harmonization[3] = -23;
  } else {
    harmonization[3] = 0;
  }
  harmonization[4] = 0;
  return harmonization;
}
Harmonizer breckerize = {
  "Breckerizer",
  breckerizeAlgorithm
};

/*
 * A tritone chord with the played note on top,
 * and a random note on the bottom.
 */
unsigned char *tritoneChordAlgorithm(byte note) {
  harmonization[0] = 0;
  harmonization[1] = -5;
  harmonization[2] = -11;
  int rnd, sel;
  rnd = millis() % 4;
  sel = rnd % 4;
  sel = (sel + 1) % 4;
  if (0 == rnd) {
    harmonization[3] = -14;
  } else if (1 == rnd) {
    harmonization[3] = -15;
  } else if (2 == rnd) {
    harmonization[3] = -25;
  } else if (3 == rnd) {
    harmonization[3] = -23;
  } else {
    harmonization[3] = 0;
  }
  harmonization[4] = 0;
  return harmonization;
}
Harmonizer tritoneChord = {
  "Tritone",
  tritoneChordAlgorithm,
};

/*
 * A major triad in first inversion with the played
 * note on top (only three note are played).
 */
unsigned char *majorTriadFirstInversionAlgorithm(byte note) {
  harmonization[0] = 0;
  harmonization[1] = -5;
  harmonization[2] = -8;
  harmonization[3] = 0;
  harmonization[4] = 0;
  return harmonization;
}
Harmonizer majorTriadFirstInversion = {
  "MajTriad",
  majorTriadFirstInversionAlgorithm
};

/*
 * A series of stacked fourths.
 */
unsigned char *fourthsAlgorithm(byte note) {
  harmonization[0] = 0;
  harmonization[1] = -5;
  harmonization[2] = -10;
  harmonization[3] = -15;
  harmonization[4] = 0;
  return harmonization;
}
Harmonizer fourths = {
  "Fourths",
  fourthsAlgorithm
};

/*
 * A series of stacked fifths.
 */
unsigned char *fifthsAlgorithm(byte note) {
  harmonization[0] = 0;
  harmonization[1] = -7;
  harmonization[2] = -14;
  harmonization[3] = -21;
  harmonization[4] = 0;
  return harmonization;
}
Harmonizer fifths = {
  "Fifths",
  fifthsAlgorithm
};

/*
 * A fifths-based voicing (from Brian Good)
 */
unsigned char *feetAlgorithm(byte note) {
  harmonization[0] = 0;
  harmonization[1] = -7;
  harmonization[2] = -8;
  harmonization[3] = -15;
  harmonization[4] = -22;
  return harmonization;
}
Harmonizer feet = {
  "Feet",
  feetAlgorithm
};

/*
 * A Jon Hassell-style voicing (from Brian Good)
 */
unsigned char *hassell1Algorithm(byte note) {
  harmonization[0] = 0;
  harmonization[1] = -5;
  harmonization[2] = -7;
  harmonization[3] = 0;
  harmonization[4] = 0;
  return harmonization;
}
Harmonizer hassell1 = {
  "Hassell1",
  hassell1Algorithm
};

/*
 * Another Jon Hassell-style voicing (from Brian Good)
 */
unsigned char *hassell2Algorithm(byte note) {
  harmonization[0] = -2;
  harmonization[1] = -5;
  harmonization[2] = -7;
  harmonization[3] = 0;
  harmonization[4] = 0;
  return harmonization;
}
Harmonizer hassell2 = {
  "Hassell2",
  hassell2Algorithm
};

/*
 * A rootless Bill Evans-style voicing (from Brian Good)
 */
unsigned char *evans1Algorithm(byte note) {
  harmonization[0] = 0;
  harmonization[1] = -5;
  harmonization[2] = -7;
  harmonization[3] = -10;
  harmonization[4] = 0;
  return harmonization;
}
Harmonizer evans1 = {
  "Evans1",
  evans1Algorithm
};

/*
 * Another rootless Bill Evans-style voicing (from Brian Good)
 */
unsigned char *evans2Algorithm(byte note) {
  harmonization[0] = 0;
  harmonization[1] = -7;
  harmonization[2] = -9;
  harmonization[3] = 0;
  harmonization[4] = 0;
  return harmonization;
}
Harmonizer evans2 = {
  "Evans2",
  evans2Algorithm
};

/*
 * Yet another rootless Bill Evans-style voicing (from Brian Good)
 */
unsigned char *evans3Algorithm(byte note) {
  harmonization[0] = 0;
  harmonization[1] = -4;
  harmonization[2] = -5;
  harmonization[3] = -8;
  harmonization[4] = 0;
  return harmonization;
}
Harmonizer evans3 = {
  "Evans3",
  evans3Algorithm
};



/* ********** End Harmonization Algorithms ********** */

/*
 * Figure out which MIDI channel this note should go out on. Currently,
 * the top note of a voicing goes out on the primary channel, and all
 * other notes go out on the alternate channel.
 */
unsigned char determineMidiOutChannel(boolean isTopNote) {
  if (!isSplitChannelMode || isTopNote) {
    return PRIMARY_MIDI_OUT_CHANNEL;
  } else {
    return SECONDARY_MIDI_OUT_CHANNEL;
  }
}

/*
 * Handle a note on event. Map the note to its harmonizations, and turn
 * on those MIDI notes.
 */
void noteOnCallback(byte *msg) {  // or is it uint8_t?
  digitalWrite(ledPin, HIGH);
  unsigned char origNote = msg[1];
  unsigned char *harmonization = allHarmonizers[harmonizationIndex].algorithm(origNote);
  for (int i = 0; i < nVoices; i++) {
    unsigned char newNote = origNote + harmonization[i];
    unsigned char channel = 0;
    if (0 != newNote) {
      channel = determineMidiOutChannel(0 == i);
      MidiUart.sendNoteOn(MIDI_VOICE_CHANNEL(channel), newNote, msg[2]);
    }
    notesOn[origNote][i].note = newNote;
    notesOn[origNote][i].channel = channel;
  }
}

/*
 * Look up all the transposed notes for the given note
 * and turn them off.
 */
void noteOffCallback(byte *msg) {
  digitalWrite(ledPin, LOW);
  unsigned char note = msg[1];
  for (int i = 0; i < 4; i++) {
    unsigned char noteOff = notesOn[note][i].note;
    unsigned char channel = notesOn[note][i].channel;
    if (0 != noteOff) {
      MidiUart.sendNoteOff(MIDI_VOICE_CHANNEL(channel), noteOff, 0);
      notesOn[note][i].note =notesOn[note][i].channel = 0;
    }
  }
  if (isCycleMode) {
    harmonizationIndex = (harmonizationIndex + 1) % nHarmonizers;
  }
}

/*
 * Echo any received continuous controller data, e.g. breath controller,
 * to the primary output channel, and to the secondary output channel
 * if it is enabled.
 */
void continuousControllerCallback(byte *msg) {
  MidiUart.sendCC(MIDI_VOICE_CHANNEL(PRIMARY_MIDI_OUT_CHANNEL), msg[1], msg[2]);
  if (isSplitChannelMode) {
    MidiUart.sendCC(MIDI_VOICE_CHANNEL(SECONDARY_MIDI_OUT_CHANNEL), msg[1], msg[2]);
  }
}

void afterTouchCallback(byte *msg) {

}

void channelPressureCallback(byte *msg) {

}

void programChangeCallback(byte *msg) {

}

void pitchWheelCallback(byte *msg) {
  int16_t bend = msg[0] << 16 + msg[1];
  MidiUart.sendPitchBend(1, bend);
}

/*
 * Turn off all the notes that are on, and reharmonize them with
 * the new algorithm. This will eventually allow the user to
 * cycle to a new harmonization without sounding a new note.
 */
void reharmonize(int oldIndex, int newIndex) {
  // Not yet implemented. Before we can implement this,
  // we need to keep track of which MIDI channel the sounding
  // notes are on. We currently don't.
}

/*
 * Read the hardware attached to the Arduino, and set global state
 * accordingly.
 */
void readHardware() {
  // Read the pot that controls how many voices should sound
  nVoices = map(analogRead(0), POT_MIN, POT_MAX, 1, 4);
  isCycleMode = digitalRead(CYCLE_MODE_PIN);
  isSplitChannelMode = digitalRead(SPLIT_CHANNEL_MODE_PIN);
  // Read the button that increments the harmonization type
  if (debouncer_harmonization_select.update() && debouncer_harmonization_select.read() == HIGH) {
    harmonizationIndex = (harmonizationIndex + 1) % nHarmonizers;
  }
}

/*
 * Enable a digital pin for input, and set the pullup.
 */
void enableDigitalInput(int pin) {
  pinMode(pin, INPUT);
  digitalWrite(pin, HIGH);
}


void setup() {
  // Enable the MIDI library and register callbacks
  MidiUart.init();
  Midi.setOnNoteOnCallback(noteOnCallback);
  Midi.setOnNoteOffCallback(noteOffCallback);
  Midi.setOnControlChangeCallback(continuousControllerCallback);
  Midi.setOnAfterTouchCallback(afterTouchCallback);
  Midi.setOnChannelPressureCallback(channelPressureCallback);
  Midi.setOnProgramChangeCallback(programChangeCallback);
  Midi.setOnPitchWheelCallback(pitchWheelCallback);

  // Set analog ports for input
  pinMode(0, INPUT);
  pinMode(1, INPUT);
  pinMode(2, INPUT);

  // Set digital pins for input, enable pullups, set up debouncers
  enableDigitalInput(PIN_HARMONIZATION_SELECT);
  enableDigitalInput(3); // Not used yet
  enableDigitalInput(4); // Not used yet
  enableDigitalInput(5); // Not used yet
  enableDigitalInput(SPLIT_CHANNEL_MODE_PIN);
  enableDigitalInput(CYCLE_MODE_PIN);

  // Initialize the available harmonizers
  allHarmonizers[0] = majorTriadFirstInversion;
  allHarmonizers[1] = fourths;
  allHarmonizers[2] = fifths;
  allHarmonizers[3] = tritoneChord;
  allHarmonizers[4] = breckerize;
  allHarmonizers[5] = feet;
  allHarmonizers[6] = hassell1;
  allHarmonizers[7] = hassell2;
  allHarmonizers[8] = evans1;
  allHarmonizers[9] = evans2;
  allHarmonizers[10] = evans3;
}

/*
 * Main loop. Read buttoins/switches/pots, update global state,
 * and handle any MIDI data that has arrived.
 */
void loop() {
  while (MidiUart.avail()) {
    readHardware();
    Midi.handleByte(MidiUart.getc());
  }
}
